300~1000kg/h plastic bottle recycling washing machine for sale

FOB Reference Price:Get Latest Price
US $40,000-80,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
20 Set/Sets per Year
Port:
shanghai
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
PET Bottle Recycling
Automatic Grade:
Automatic
Production Capacity:
300-2000kg/h
Place of Origin:
China (Mainland)
Brand Name:
saiou
Model Number:
SO - plastic PET recycling machine
Voltage:
380V 50HZ
Power(W):
200KW
Dimension(L*W*H):
30m*2m*3m
Weight:
8-15tons
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
category:
recycle washing machine
Machinerry material:
Stainless Steel
Alias:
plastic PET recycling machine
Plastic Type:
PET Plastic
Breaker:
Delixi
Contactor:
Siemens
Temperature Controller:
Omron
other name:
Plastic washing Machinery
title:
plastic recycling machines sale
Packaging & Delivery
Packaging Details
Films Packing for waste plastic pet bottle recycling line, plastic recycling machines sale
Delivery Time
Shipped in 60 days after payment
Product Description

waste plastic pet bottle recycling line

This PET recycling plastic machine line is composed of lable separator, crusher, cold & hot washer, dewaterer,dryer system, hopper etc.

characteristic :
1. High automation level to reduce production cost on labor and ensure high output.
2. Control system is convenient to operate and monitor.
3. All parts contacting with material and water are made of high-quality 304 stainless steel.
4. Ideal impurity removal effect.


The process of this automatic production line for waste plastic pet bottle recycling line is as following:
Belt conveying --- label remover--- selecting table---Belt conveying --- crusher---firction washing machine ---washing bank--- screw feeder --- Steam boiler---screw feeder--- horizontal washing device --- washing tank---screw feeder---dewatering machine---pipeline conveyer drying system---air drying storage.

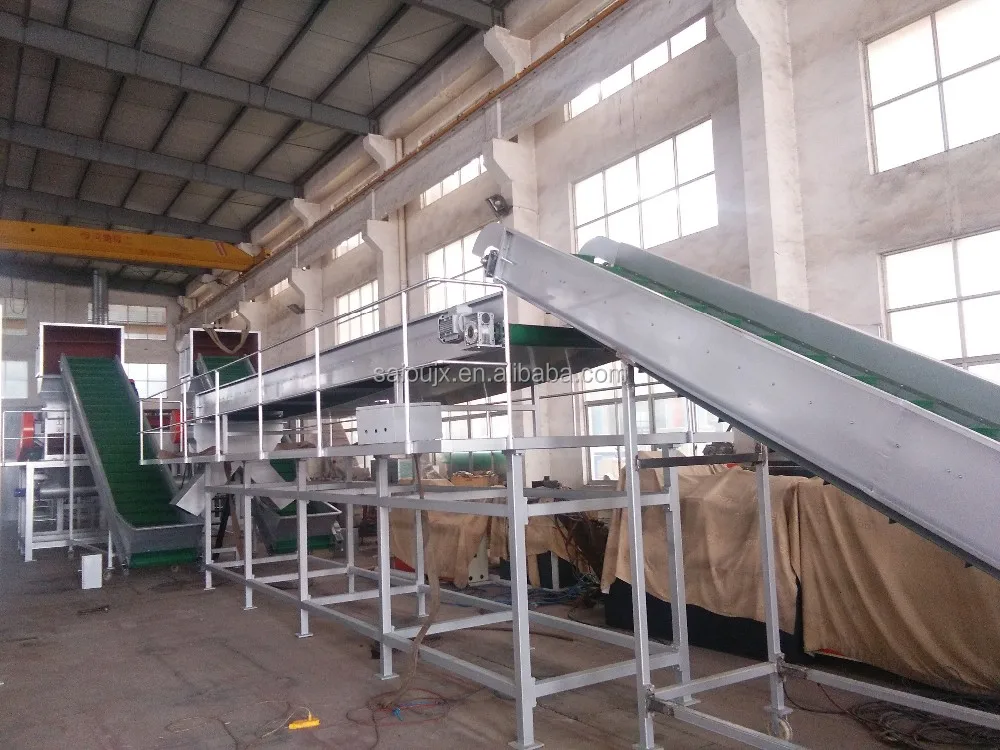

BELT CONVEYER

Motor power: 1.5kw.

Mobile truckle installed at bottom, so it can move freely.

SELECTING TABLE

 Motor power: 1.5kw.


BELT CONVEYER

Motor power: 1.5kw.

CRUSHER WITH WATER

 Motor power: 37kw.

 Rotational blades: 10pc.
 Fixed blades: 4pc.
 With emergency operating switch.

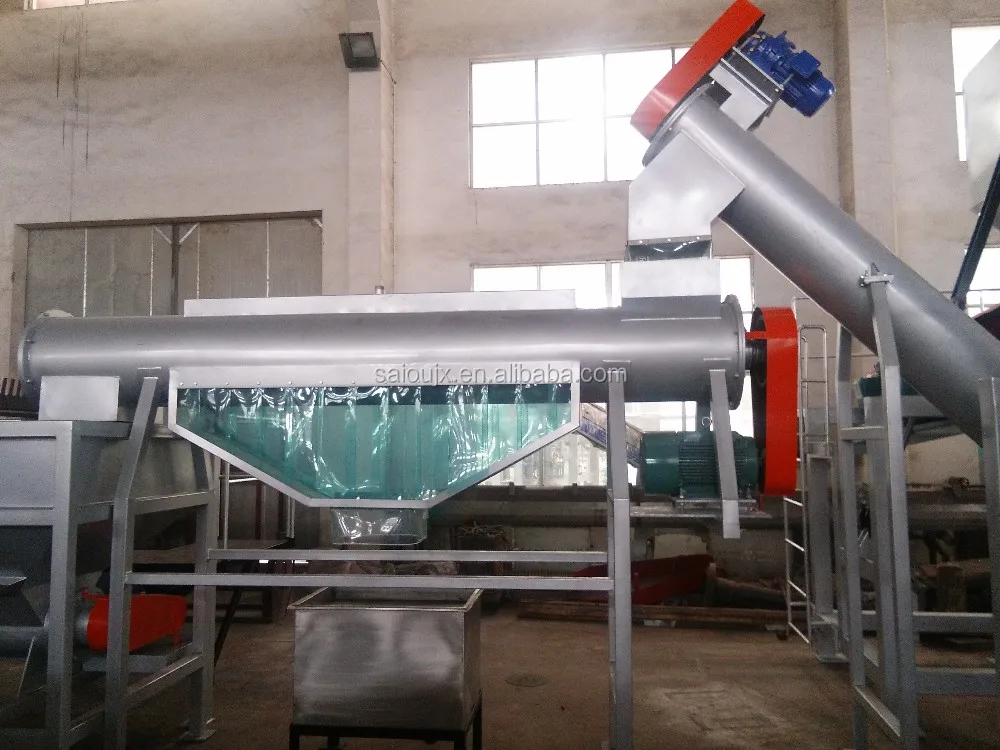

FIRTION WASHING MACHINE

Motor power: 11kw.

Screw diameter: Ф450mm

The parts contacted with raw material are made of 304 stainless steel.


 HORIZONTAL WASHING DEVICE

 Motor power:7.5kw

 Effective length: 3000mm.

WASHING TANK

Motor power:2.2kw

 Material:304 stainless steel(exclude bracket)

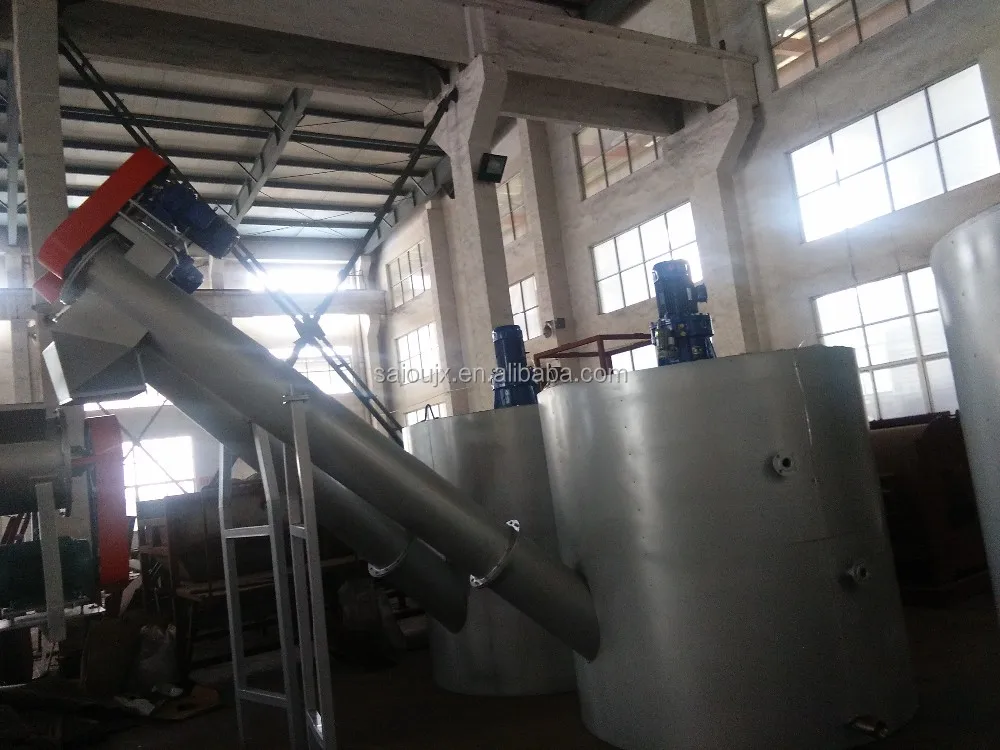

HOT WASHER

Motor power: 7.5kw

Using steam to heat the water.

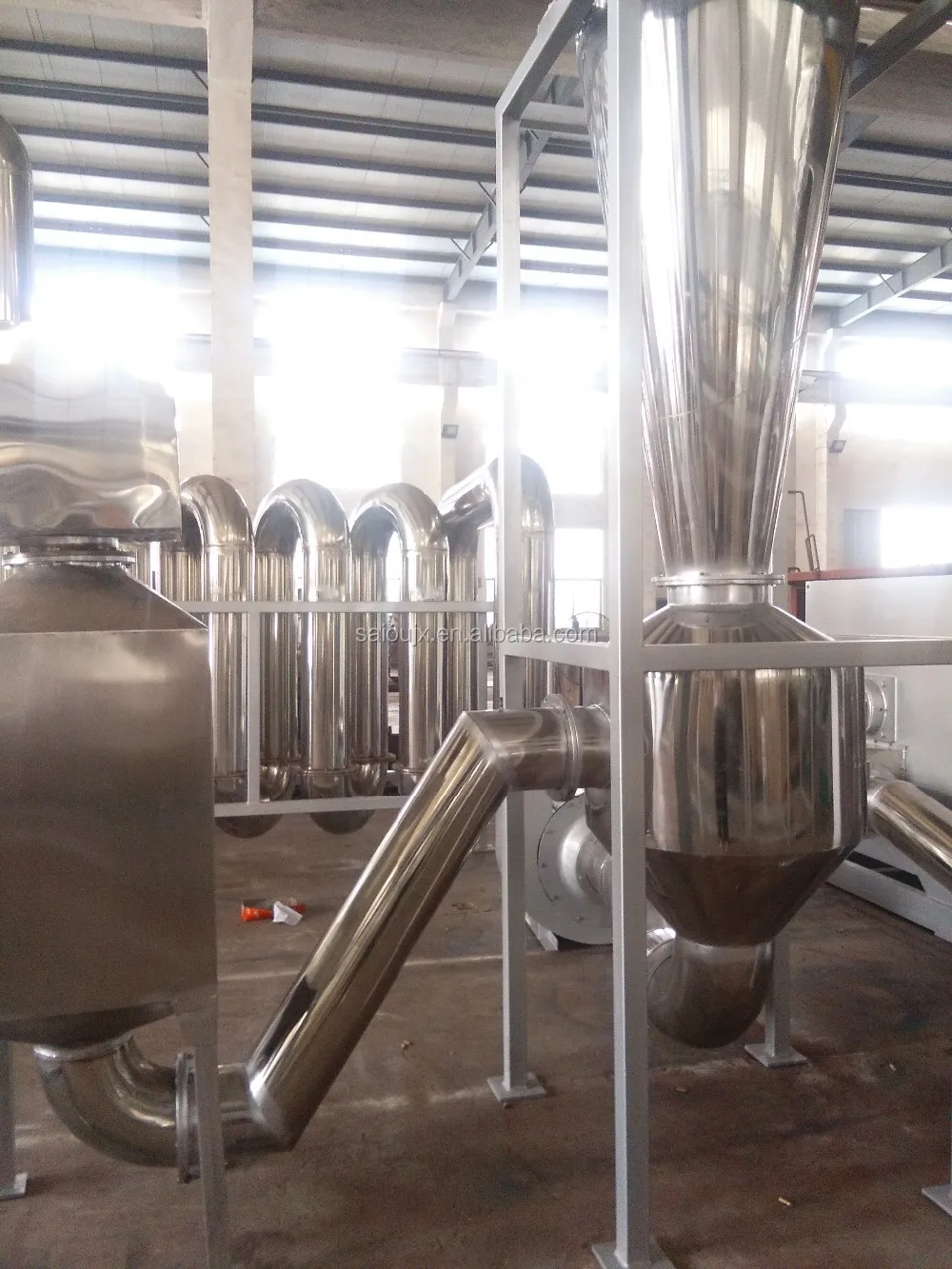

PIPELINE CONVERYER DRYING SYSTEM

Heating Power: 54kw

Heating method: electric heating

The parts contact with raw material is made of stainless steel.

advantage:
PET bottle recycling plastic machine is one of the feature products of our company, clients using this production line all over the world, to recycle PET bottles, to better our life and city. The last moisture of PET flake can below 3%

Working principle: This PET bottle recycling plastic machine, separate label by label remover, crush bottle into flakes, remove the earth and sand though friction washer, hot washer, and washing tank,dewater and dry to get clean PET flakes.


Capacity of our PET bottle recycling plastic machine:from 300kg/h to 2000kg/h, we can accord to customer’s requirements to design the suitable plastic machine.

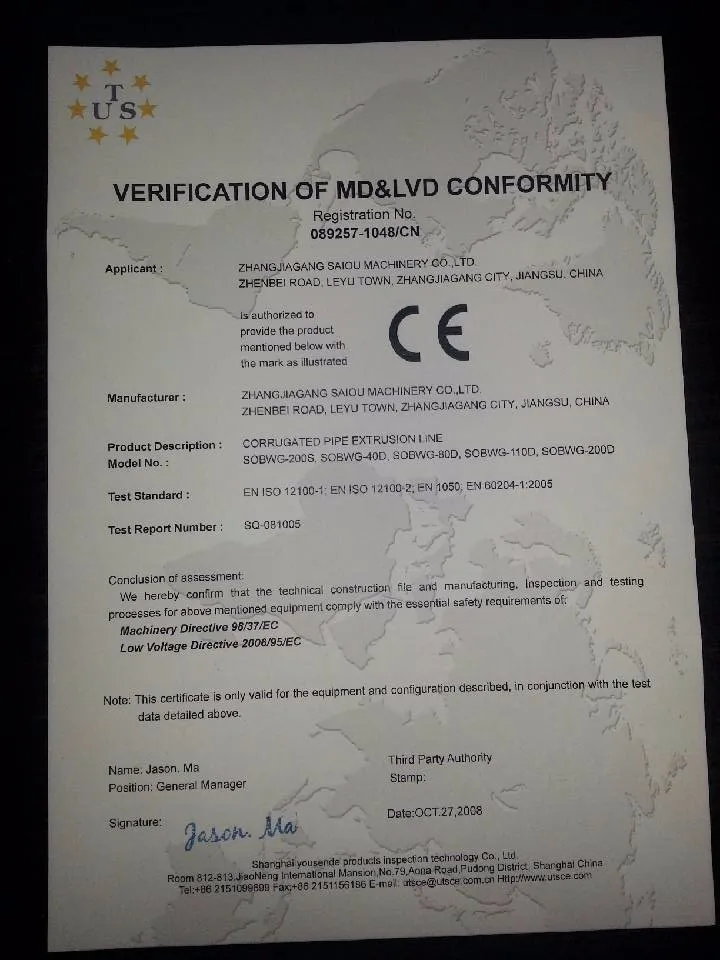

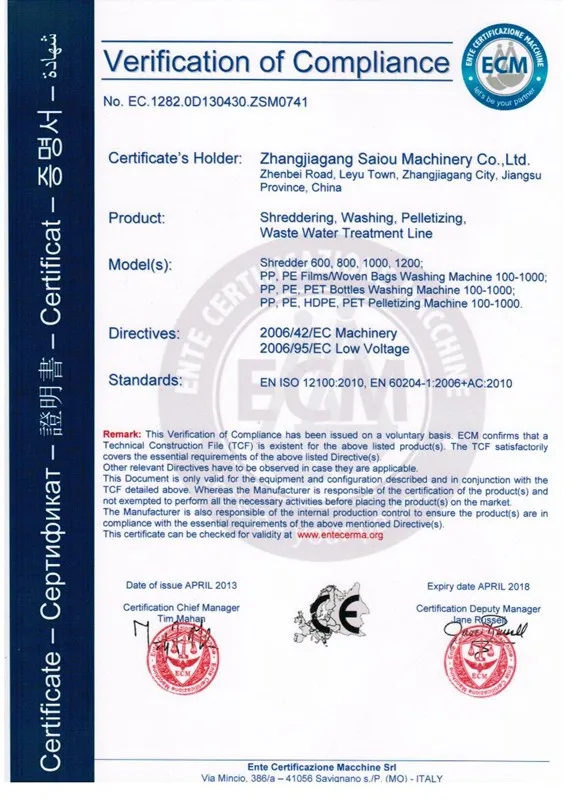

Certifications
Our Service

Pre-Sales Service

Inquiry and consulting support.

Sample testing support.

 View our Factory.

After-Sales Service

Training how to instal the machine, training how to use the machine.

Engineers available to service machinery overseas.

Our Services
warranty waste PET bottle flake recycling plastic machine
If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. after One Year customer must pay for Spare Parts, Saiou will provide long-term technical assistance.Workers must operate the machines according to the design of the machine.

Saiou Machinery will not be responsible for accidents which are caused by improper operation of workers.

Payment:
30% TT is down payment as deposit, and 70% is paied before shipment.
30% TT is down payment as deposit, and 70% by irrevocable L/C at sight.
100% irrevocable L/C at sight.

Packing & Delivery
Packaging
Size
30(L) * 3(W) * 4 (D)
Weight
8-15T



Packaging Details
Under normal circumstances,we use the film packing .

If you need wooden packing ,you can be requested.
Company Information

Zhangjiagang Saiou Machinery Co., Ltd. is an enterprise specializing in researching and producing plastic machinery.


SAIOU MACHINERY was set up since 2001, with various quality, competitive advantage products, and good after-sale service. we are the market leader in plastic machinery market. Our products are very popular with people at home or abroad, So we have ever been exported to many countries, such as, Canada, Mexico, Chile, Egypt, Slovakia, Dominican Republic, Indonesia, Bulgaria, Saudi Arabia, Libya etc.

Advanced equipment, mature techniques and strict testing system guarantee high quality products. Saiou Machinery trust our principle of “QUALITY IS OUR CULTURE” Saiou would like to cooperate with you for a longer business in near futures..

Welcome to SAIOU MACHINERY! We are always here.

Related Products

pp pe film pelletizing line

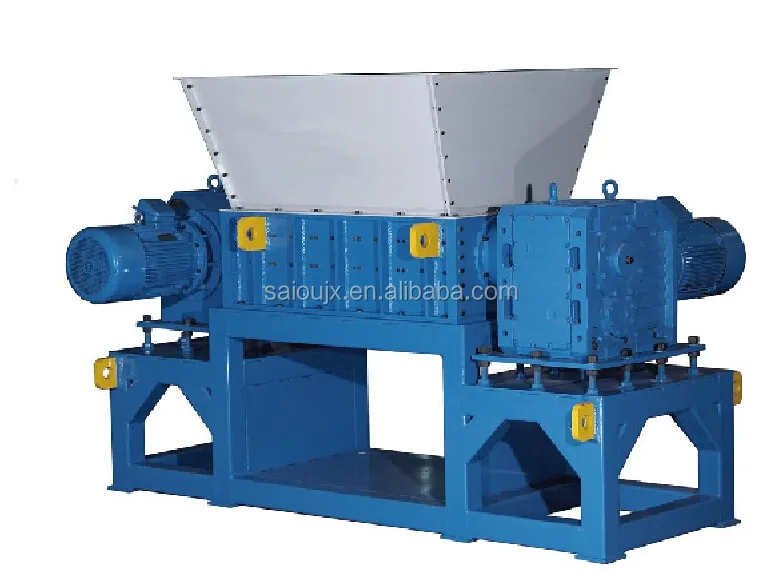

double shredder

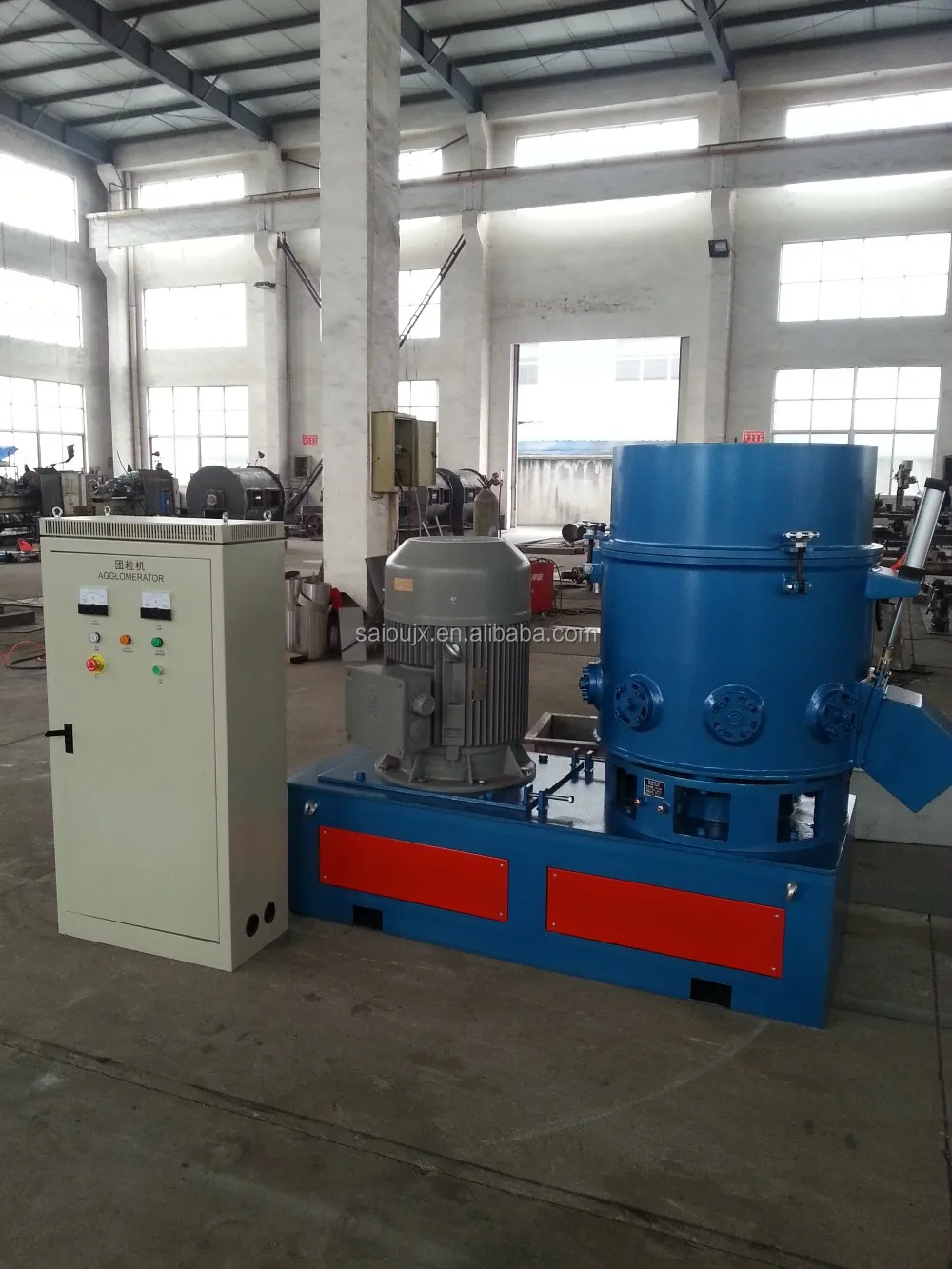

compactor/agglomerater machine
